CT/MRI Segmentation
Manual, sub-millimeter anatomical segmentation from DICOM data.
Anatomical Models for Medical Device R&D
One medical designer. From your DICOM to a physical model.
An independent medical design studio producing anatomical models, silicone phantoms, and DICOM segmentation for medical device companies, from scan to finished part, by the same person who reads the data and designs the solution.
Hover to look insideTap to look inside
Materials range
00-15 to 60A
Shore hardness
Turnaround
Days
DICOM to physical model
Process
1
Designer, end to end
Confidentiality
Full
NDA on request
Explore · The Models
Step inside the scan.
Each model is a real reconstruction you can explore in 3D, segmented from CT and rebuilt chamber by chamber. The heart experience is live; the rest are in production.
01 · CARDIAC
Heart
Chambers, valves, aortic root and coronary arteries.
Live Explore → 02 · NEUROBrain
Cortical surface, vasculature and deep structures.
Coming soon Preview → 03 · THORACICLungs
Pulmonary airways, lobes and vascular tree.

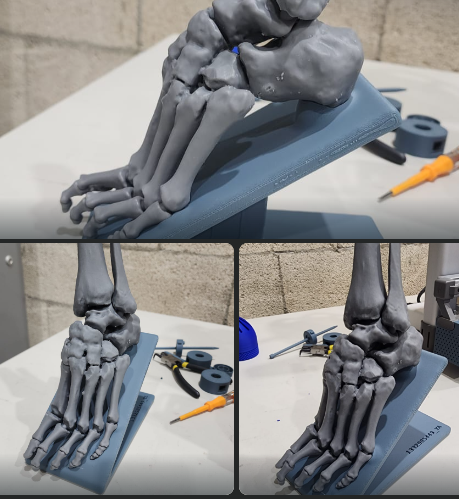

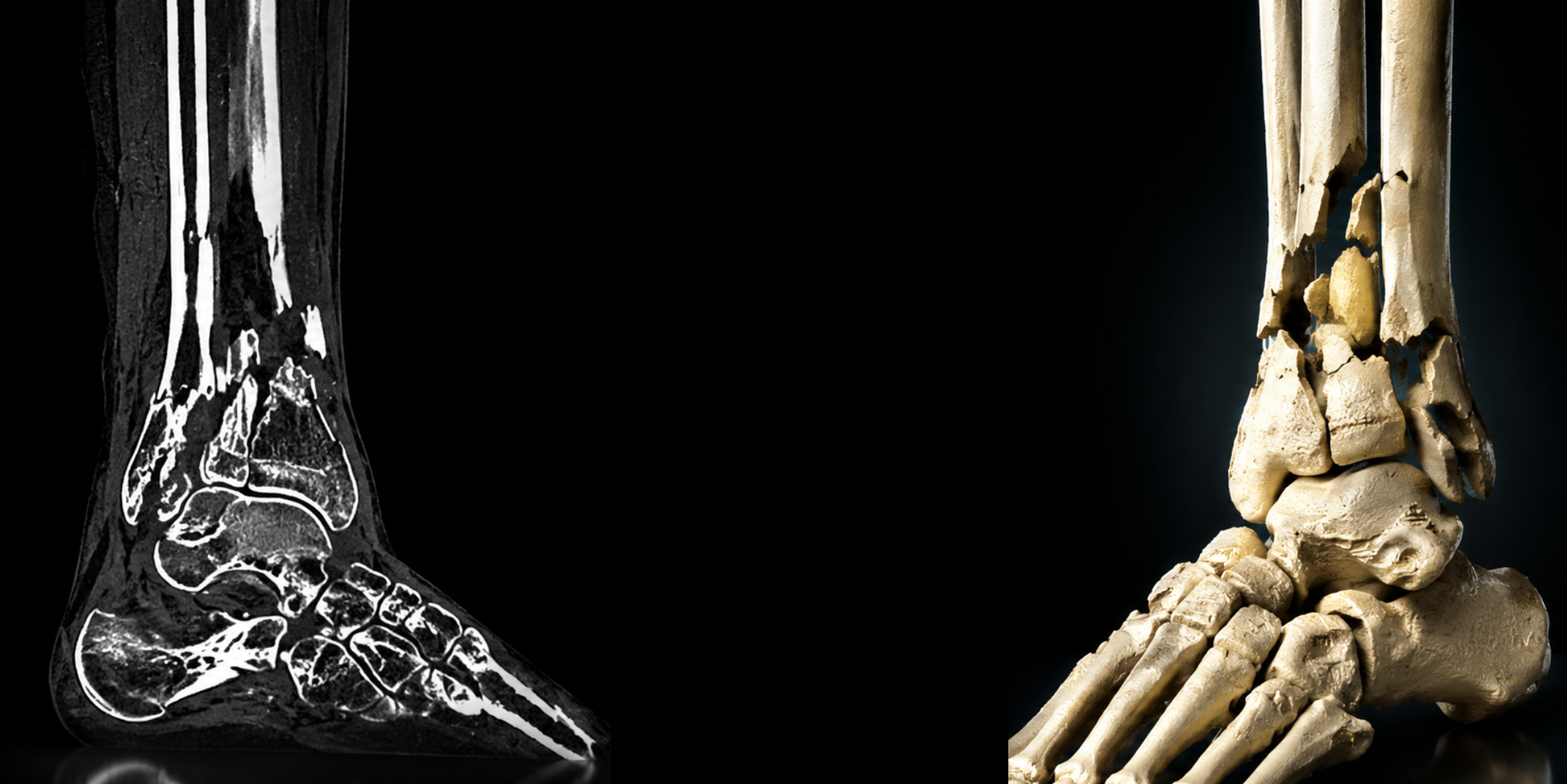

Coming soon Preview → 04 · SKELETALBones
Full skeletal assembly with cortical detail.
Coming soon Preview →
01 / Materials & Craft
The widest material range, from one studio.
Soft tissue to rigid bone, optically clear demo parts to tissue-mimicking phantoms. The same hands segment the scan, design the mold, and cast the finished part.
Silicone 00-15 → 50A
Transparent SLA resin
Flexible 60A
FDM structural
Anti-friction coating
Multi-color by tissue
02 / Capabilities
One studio. The full chain.
From raw DICOM to finished part. No handoffs to other vendors. The person who reads the scan is the person who designs and builds the model.
Digital
DICOM to 3D Model
DICOM to STL or parametric CAD. Mesh repair and optimization included.
STL to XT / STEP
Parametric CAD conversion for teams needing editable geometry.
AI Segmentation Tools
Custom AI-based segmentation software for your anatomy and workflow.
Printing
FDM
Thermoplastic printing for structural anatomical components and mold cores.
SLA Resin
High-resolution resin printing, post-processed to full optical transparency.
Flexible 60A
Elastomeric printing at 60 Shore A for compliant anatomical structures.
Multi-color
Anatomical color differentiation by tissue type for R&D visualization.
Laser Cutting & Engraving
CO₂ laser at 55 W for precision cutting, engraving, and etching of sheet and tissue-mimicking materials.

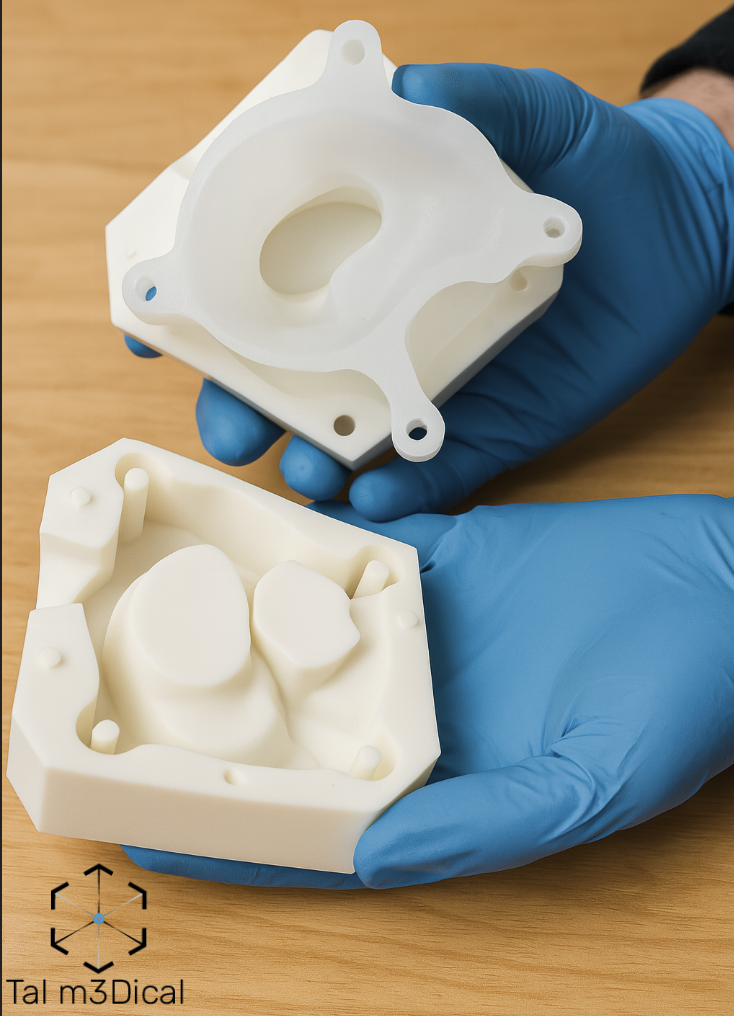

Silicone Casting

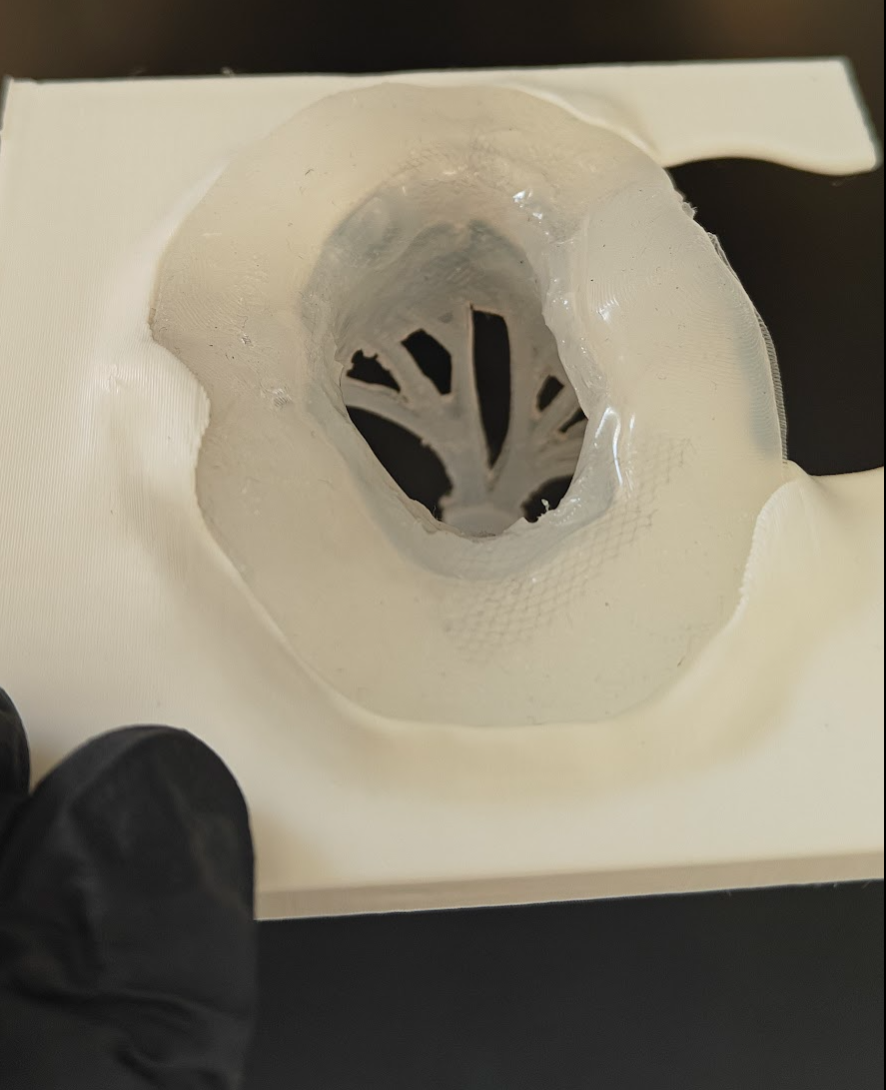

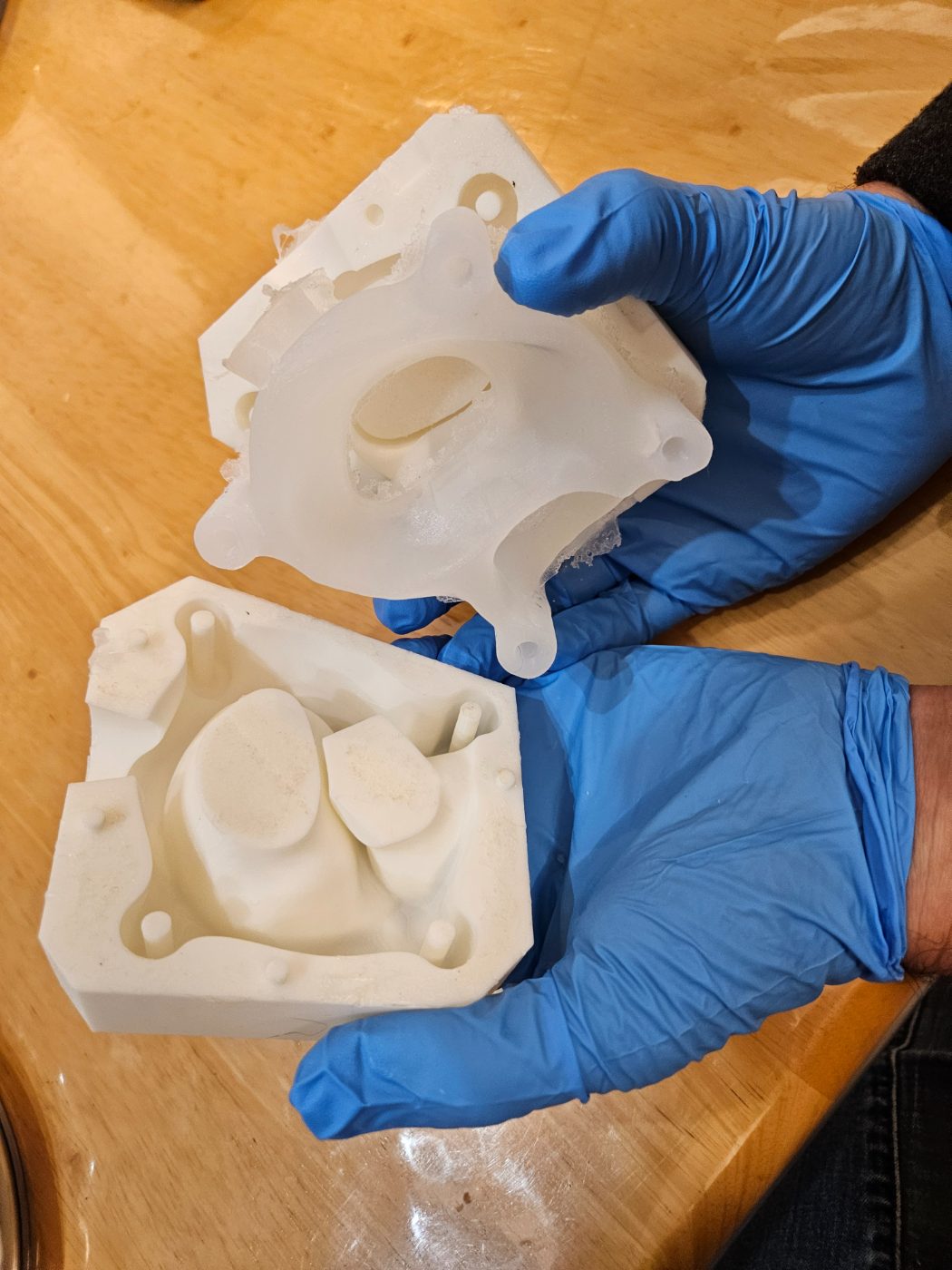

Mold Making
Silicone molds from printed masters for repeatable phantom production.

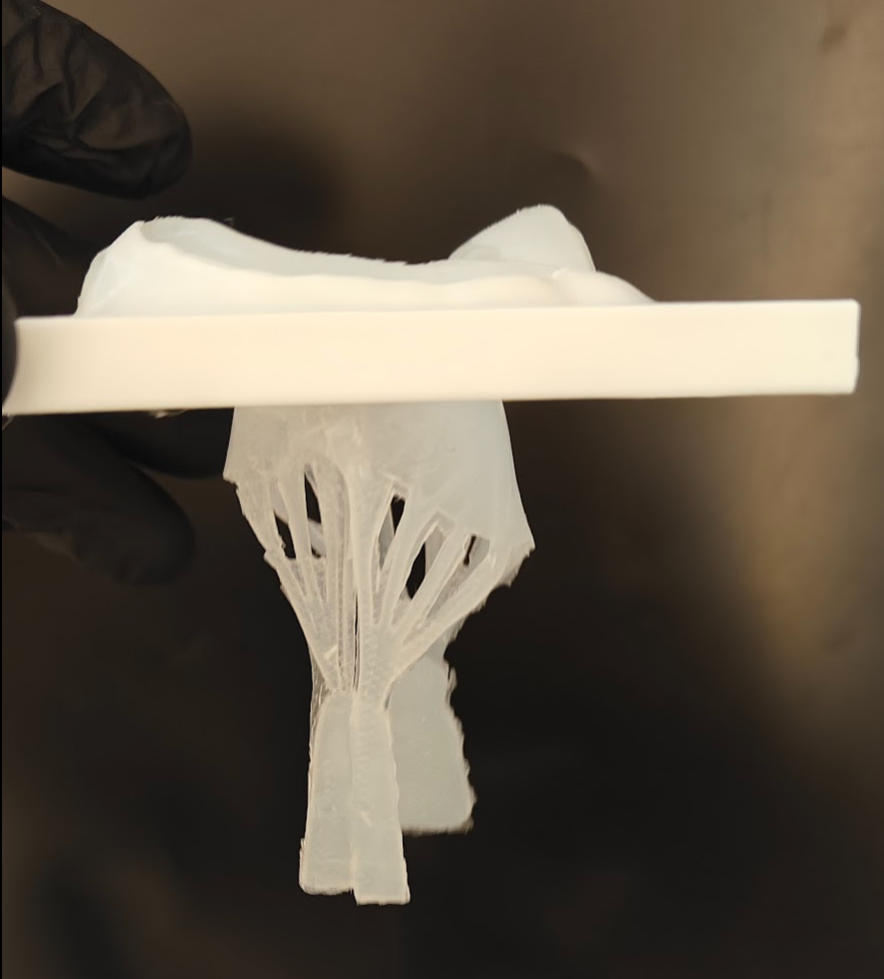

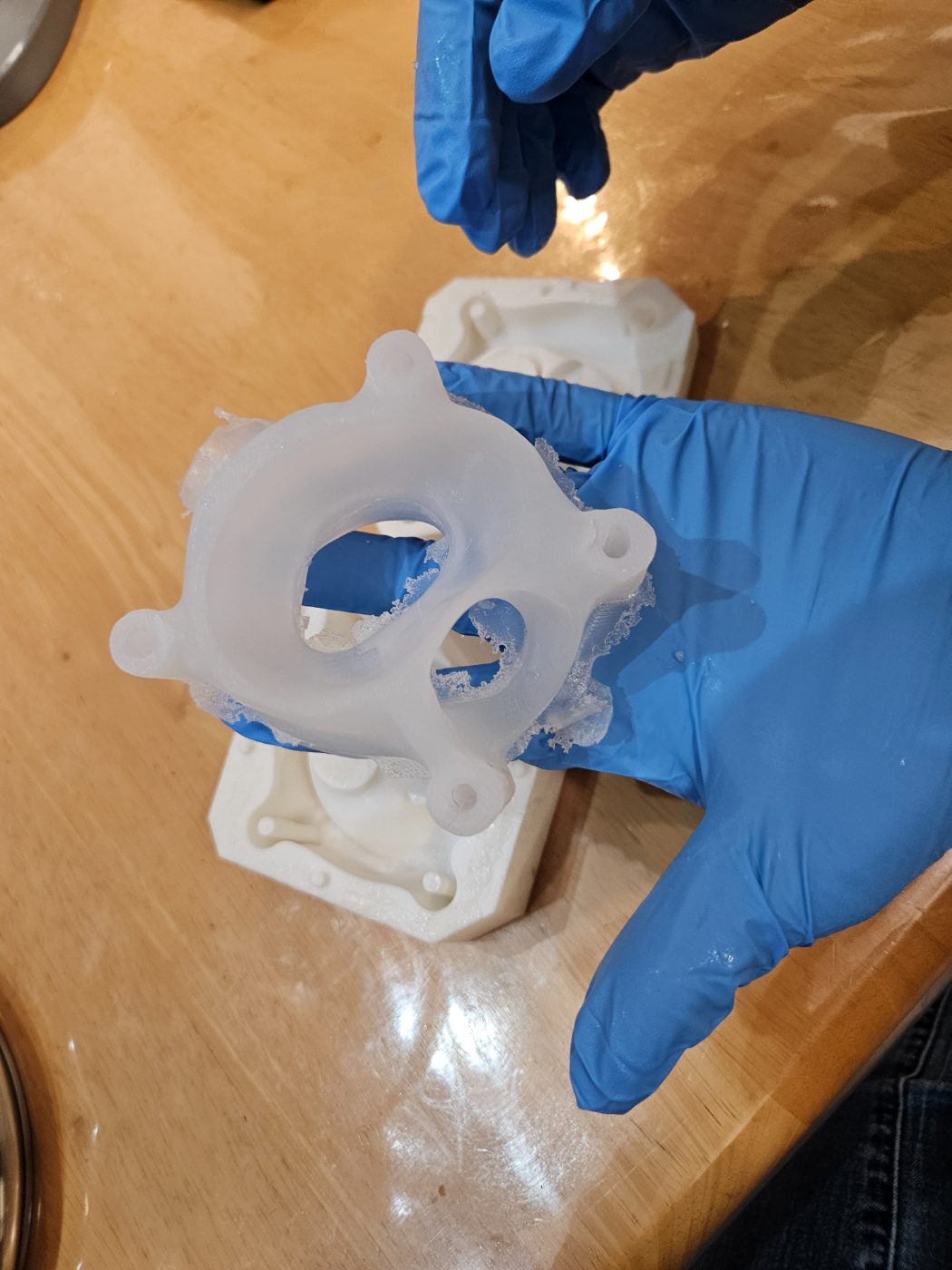

Tissue-Mimicking Phantoms
Cast silicone from 00-15 Shore to 50A. Tuned per tissue type and protocol.
Anti-friction Coating
Wet-tissue surface treatment. Critical for catheter and endoscope testing.
03 / About
The designer you speak to is the one who builds it.
Tal Wainer Katsir is a medical designer and industrial designer with deep experience in anatomical modeling, DICOM processing, and physical fabrication. Tal m3Dical was built around one principle: R&D teams need a partner who handles the entire chain without losing accuracy at each handoff.
Every project is handled directly. The person who reads the scan designs and finishes the part.
Clients include medical device startups and established companies using Tal m3Dical for R&D testing, V&V protocols, and investor demonstration models. Full confidentiality. NDA available on request.
Tal Wainer Katsir
Medical & Industrial Designer · Founder
- 01
Full chain, one contact
From segmentation to finished part. No translation loss between stages.
- 02
Widest material range
Shore 00-15 silicone to 60A flexible print. Most studios offer one technology.
- 03
Speed
DICOM to physical model in days. No procurement chain, no subcontractors.
- 04
Absolute confidentiality
Pre-commercial device work requires it. Nothing leaves without authorization.
04 / FAQ
Questions R&D managers ask first.
Tal m3Dical is an Israel-based medical design studio producing anatomical phantoms and validation models for medical device companies. Work covers R&D benchtop testing, V&V protocols, and investor demonstrations. Output ships globally.
Tal m3Dical produces custom silicone anatomical replicas cast from 00-15 Shore (extremely soft, tissue-equivalent) to 50A Shore. Molds come from 3D-printed masters derived from your CT or MRI data. Anti-friction coating is available for vascular and luminal phantoms.
The key differentiator is whether the person doing segmentation also specifies the fabrication. Here, the same medical designer segments the CT data, determines wall thicknesses, selects the fabrication approach, and builds the model, with no translation loss between digital and physical. Turnaround is typically days to two weeks depending on complexity.

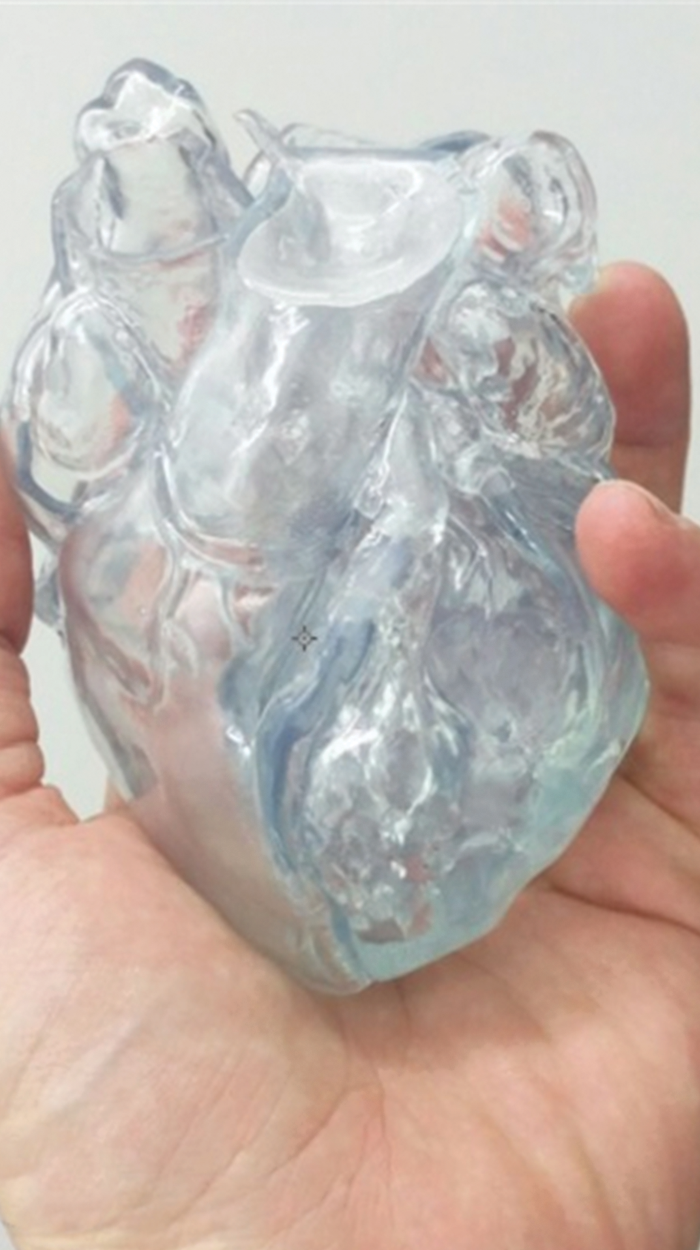

Tal m3Dical produces transparent anatomical models using SLA resin printing with a multi-stage post-processing protocol for full optical clarity. Used for investor pitches, trade show demos, and device visualization. Internal colored structures can be visible through a clear outer wall.
They are built as research and engineering tools for medical device R&D, V&V, and demonstration. Tal m3Dical is a design studio, not a regulated device manufacturer, so the models support development work rather than clinical decision-making. Most clients bring a development need and the right deliverable is defined together on a short scoping call.
Usually CT or MRI data in DICOM format and a short description of what you are testing or demonstrating. If you do not have a scan yet, that is fine, the anatomy and intended use can be discussed first. Most projects begin with a 20-minute call that resolves scope and the right deliverable.
Typically days to about two weeks, depending on complexity, material, and finishing. Because one person handles segmentation, design, and fabrication, there is no procurement chain or subcontractor handoff to slow things down. Rush timelines can often be accommodated, ask when scoping.
Effectively any region that can be reconstructed from CT or MRI, including cardiac, neurovascular, pulmonary, skeletal, spinal, pelvic, and abdominal anatomy. Soft-tissue, vascular, and bony structures can be separated and color-differentiated by tissue type for clearer R&D visualization. And it is not limited to scan data, anything beyond CT or MRI can be modeled to spec from reference images, drawings, physical samples, measurements, or your design intent, whatever the project needs.
Yes. Pre-commercial device work requires it. Patient data and project details are handled confidentially and an NDA is available on request before anything is shared. Nothing leaves the studio without your authorization.
Yes. During the project you get access to a private online 3D viewer where you can rotate, inspect, and comment on the model in your browser, no software to install. You sign off and approve the manufacturing order before anything is built, so there are no surprises.
05 / Contact
Have a project?
Describe what you need modeled, the anatomy involved, and your intended use. A call usually resolves scope in 20 minutes.
